List

The List product integration displays list of items. It is possible to display a brief view of the items in the campusM home page. The items can be linkable to external URLs.

Overview

The List product integration displays list of items either configured in the App Manager or received from a REST API. It is possible to display a brief view of the items on the home page. The items can be linkable to external URLs.

For more information, watch List (5:10 min).

Vendors

The List product integration is supported currently by the RESTful API vendor or by basic App Manager configuration.

User Experience

The following section describes information relating to the user experience for the List product integration.

User Activities

  • Users can view lists of items in the live tile (home page) and view the full list after clicking the tile.
  • The user can view a filter page (optional) and select a filter to display the lists for that filter.
  • The user can treat the list as a checklist and view the progress of each list.
  • The user can mark items as favorites and view them in the Favorites tab.
  • The user can search items via a search bar.
  • The user can filter items by due date (when enabled) such as, done, due, overdue, etc.

Authentication

When using the REST API vendor, the connection to the vendor is handled as part of the generic API Configuration under the Vendor section. The first part of the API Configuration details the URL to which to connect and any parameters that are required. The second part relates to the API Authentication for the URL, which is vendor-specific, and could also be specific to the vendor instance the client is running.

Offline Support

No offline support is available.

Screenshots

The following is an overview of the List product integration user interface for reference when configuring it:

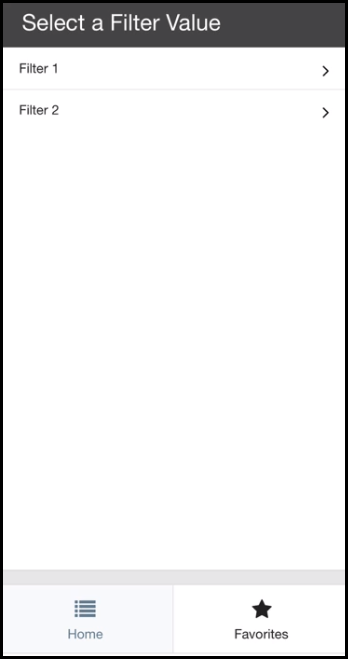

Select Filter (the preliminary filtering page is not mandatory)

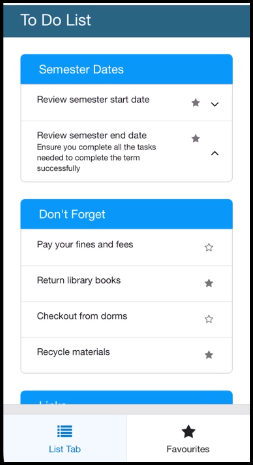

To Do List with Favorites Selected
filter_tab.png to_do_list.png

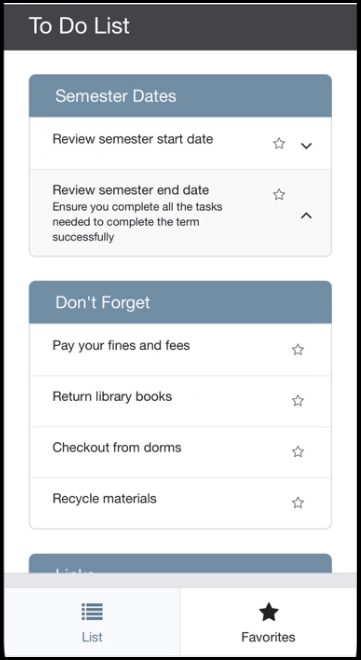

To Do List Without Favorites Selected

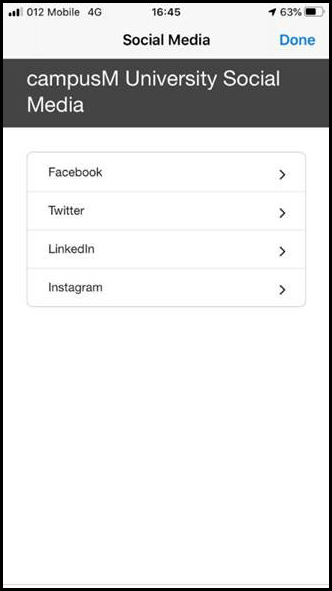

Links Without Favorites
to_do_list_no_favorites.png links_no_favorites.png

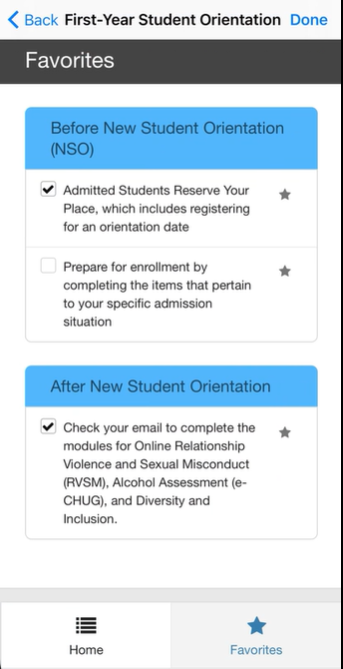

Favorites with Checkboxes

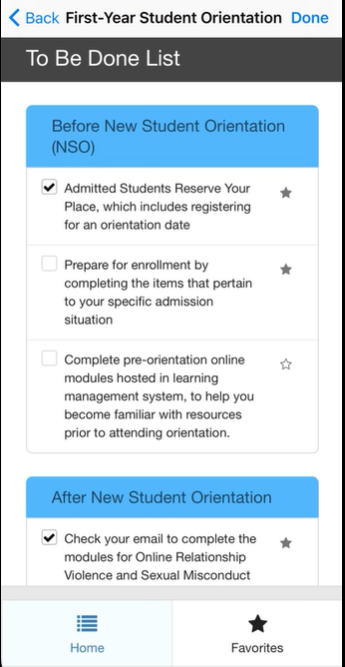

To Do List with Checkboxes
Favorites.png To Be Done List.png

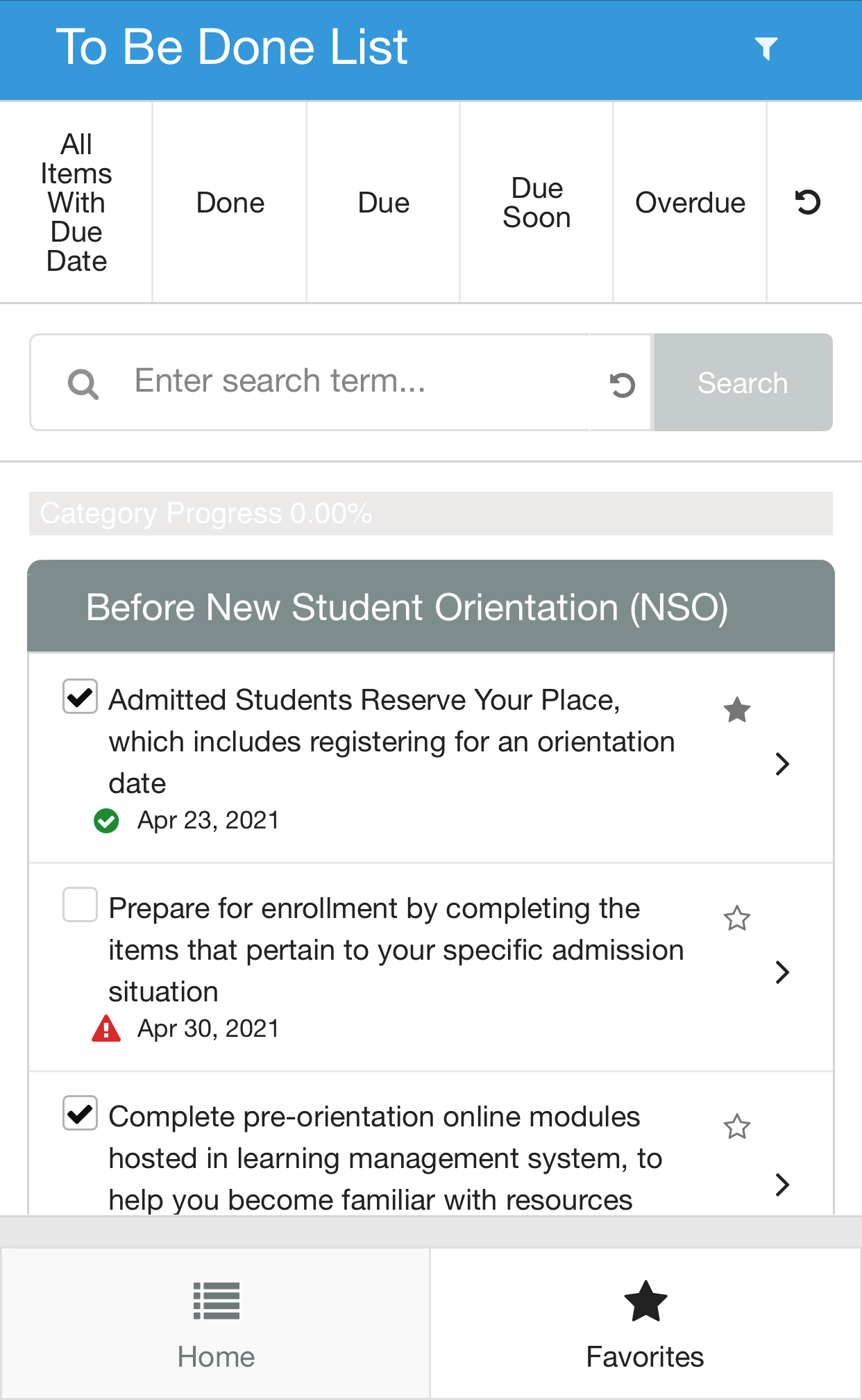

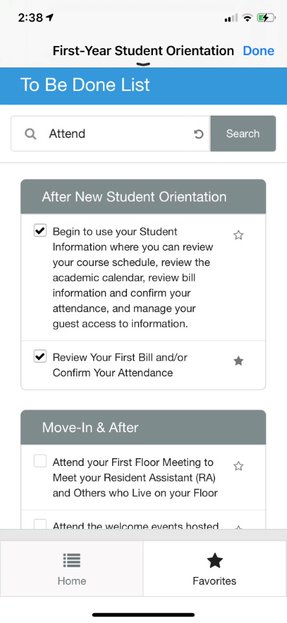

To Do List with Searchbar
ToDoSearch.jpg ToDoList.PNG

Live Tile

A 1*2 live tile displays the first few items in the list. Items can be configured to link to external URLs.

First Category Second Category Only One Category, Without Category Title
catagory1.png catagory2.png list_live_tile_no_category.png
To make the live tile active, the borders in the tile must be disabled. This is done by putting the following in the Tile Config code:

"hoverBorderColor": null,

"borderColor": null

Technical Overview

RESTful API

In order to retrieve the data via a RESTful API, you may create an API that applies the following requirements:

Response Mapping
Field Name Type Description Mandatory Yes/No
categories Array The array of categories Yes
categoryTitle String The title of the category Yes
filter String The title of the filter Yes unless Enable Preliminary Filters Page is not enabled
action String (one of 3 options: "URL", "description" or "none") The action for the items in the category Yes
itemsArray Array The array of items per category Yes
itemTitle String The title of the item Yes

description

 String The description of the item. Yes when the category action is "description"
url String The URL for the item to link to Yes when the category action is "url"
image String The URL for the image for the given item that displays on the live tile No
dueDate String The due date for the item. Must use DD/MM/YYYY formatting. No
isFavorite Boolean Is this item a favorite No
isChecked Boolean Is this item checked No

The lists can also be configured directly on the configuration page by selecting Configuration as the vendor.

In order to update the selections via an API, you may create an API that applies the following requirements:

Sample Response

{

"category": "category title",

"item": "item title",

"add": true,

"type": "favorites",

"userId": "userId"

}

Body Mapping
Field Name Type Description Mandatory Y/N
category String The category title Yes
item String The item title Yes
add boolean True for adding, false for removing Yes
type String Either "favorites" or "checkbox" Yes
String The user's identifier as configured in the API configuration. Yes

The API returns a JSON response of the following structure:

Sample Response

{"status": "success"}

Response Mapping
Field Name Type Description Mandatory Y/N
status String The status of the request. Yes

PeopleSoft

The PeopleSoft vendor requires the RESTListeningConnector listener.

The PeopleSoft vendor only returns Description items. It doesn't support Image URLs or External URLs (see when the vendor is set to Configuration).

The URL passed to the Product Integration needs to include the full path to the query, i.e. https://PEOPLESOFT_HOSTNAME/PSIGW/RESTListeningConnector/ExecuteQuery.v1/PUBLIC/QUERY_NAME/JSON/NONFILE (assuming your query follows this URL pattern).

We expect and set a number of query parameters by default. These are:

    • isconnectedquery (set to N)
    • maxrows (set to 0)
    • prompt_uniquepromptname (set in the Configuration, below)
    • prompt_fieldvalue (set to the User Identifer Value from the Configuration, below)
    • json_resp (set to true)

The expected response structure is as follows. Row attributes must include DUE_DATE(if due dates are enabled in the configuration),ITEM_TITLE, and COMMENT_INFO:

{ "status": "success", "data": { "query": { "numrows": 6, "queryname=": "AAC_CM_TODO_TILE", "rows": [ { "attr:rownumber": 1,

"DUE_DATE": "01-01-2022",

"ITEM_TITLE": "Title",

"COMMENT_INFO": "Comment Info",

// other attributes } ] } } }

DUE_DATE must always be in the DD/MM/YYYY format, just like the RESTful API vendor.

Configuration (Categories and Items)

The lists may also be configured directly on the configuration page (by selecting Configuration as the vendor).

Product Integration Configuration

To configure the List product integration, select Product Integrations > Add Product Integration and select List.

The following table describes the configuration options available on this page.

Configuration Option Description Mandatory Data Type Default Example
Manage Integration
Enable Product Integration Select to enable the product integration on the user's app. No Checkbox Unchecked
Product Integration Description A description of the product integration for internal use Yes String
Screen Title The title that appears in the top header of the service No String Registration Status
General
Enable Preliminary Filters Page Select to enable the preliminary filters page No Checkbox Unchecked
Enable Favorites Select to enable favorites No Checkbox Selected
Enable Checklist Select to enable checklists No Checkbox Unchecked
Checklist Progress Bar – Controls for displaying the progress of completion for each of the lists.
Enable Progress Bar Enables or disables the progress bar for each individual list. No Checkbox Unchecked
Text - "Progress" The text inside the progress bar, next to the value. No String Progress
Progress Bar Type Determines how the progress is formatted. Either a percentage value, i.e. "40%", or a fraction, i.e. "4 of 10". No Array Percentage (%)
Categories Progress Bar
Enable Progress Bar Enables or disables the progress bar for each category. No Checkbox Unchecked
Text - "Progress" The text inside the progress bar, next to the value. No String Progress
Progress Bar Type Determines how the progress is formatted. Either a percentage value, i.e. "40%", or a fraction, i.e. "4 of 10". No Array Percentage (%)
Due Dates Configuration
Enable Due Dates Select to enable due dates. No Checkbox Unchecked
Due Date Display Format The format in which to display the due date. No String ll
Due Soon Popup Choose the number of days before the due date to display popup reminder. No Number 7
Due Soon Popup Title Label No String You have items due soon.
Due Soon Popup Button Label No String Show me
All items With Due Date Label No String All items With Due Date
Done Items Label No String Done
Due Items Lable No String Due
Overdue Items Label No String Due Soon
Done Icon Color No Color Code #178932
Due Soon Icon Color No Color Code #e6c100
Overdue Icon Color No Color Code #db2828
Enable Searchbar Select to enable searchbar. No Checkbox Unchecked
Vendor– This section defines the structure of the APIs used in this product integration.
Vendor Name Defines to which vendor the integration connects. No URI https://myDomain.com

RESTful API Configuration

This section contains the RESTful API details to define the API structure.
Base URL to retrieve the information No URI https://myDomain.com
User Input Identifier
Parameter Input Option Choose a parameter input option that matches your needs. i.e. Select 'Username' to use the username attribute associated with the end- user. No Object Username
Token Property Name Enter the property name to be retrieved from the token ({ USERNAME, MAIL, GIVEN_NAME, SURNAME, FULL_NAME } or as named in the integration profile). No String USERNAME
Constant Value The value when the User Identifier is set to Constant. No String
API Configuration This section contains the API details to define the API structure. You can test the API configuration. See Testing API Product Integration Configuration.
Base URL to retrieve the information The URL for the API. No URL https://myDomain.com
User Input Identifier
Parameter Input Option The parameter input option. Possible values: Username, Token Property, and Constant. It is sent as the path parameter. No Drop-down list Usrename
Token Property Name Enter the property name to be retrieved from the token ({ USERNAME, MAIL, GIVEN_NAME, SURNAME, FULL_NAME } or as named in the integration profile) No String USERNAME
Constant Value The value when the user identifier is set to Constant No String
API Authentication
Authentication Type Authentication type against the web service. The options are the following:
  • No Auth.
  • Basic - username and password for Base64 basic authentication.
  • API Key - can be added to a Header or to the URL (Query Param) or both.
  • OAuth – select an OAuth integration profile (from the Integration Profiles configured in App Settings) and choose where the access token must be added, Header or URL.
 No Array No Auth

PeopleSoft API Configuration

Base URL to retrieve the information This is the full domain and path of the PeopleSoft query, minus the query parameters. Yes URL
User Input Identifier
Parameter Input Option Either Username, Token Property (from CMAuth) or Constant (for a static value). Yes Drop-down list Username
Token Property Name Only used if Parameter Input Option is Token Property. No String
Constant Value Only used if Parameter Input Option is Constant. No String
API Authentication
Authentication Type Authentication type against the web service. The options are the following:
  • No Auth.
  • Basic - username and password for Base64 basic authentication.
  • API Key - can be added to a Header or to the URL (Query Param) or both.
 Yes Drop-down list

Show Advanced Settings

Controls the display of 'Advanced Settings', below.

No

Checkbox

Unchecked

Advanced Settings

Unique Prompt Name

For PeopleSoft, to determine the type of identifier being passed. This complements the prompt field value, which is determined by the User Identifier.
Categories and Items – Only visible if the Vendor Name is set to Configuration.
Categories
Category Title The title for this category No String Category 1
Filter The title of the filter to which this category belongs No String Filter 1
Action The action for this category – External URL, description, or none. No Object None
Items
Item Title No String Item 1
Image URL The URL for the image for the given item that displays on the live tile – if this field is not populated, the image block does not display on the live tile. No URI
Description The description for this item. No String Description 1
External URL The URL for this item to link to. No URI https://www.link.here
Due Date Please enter a date in the format DD/MM/YYYY. Leave empty if there is no due date. No String 23/04/2021
Caching Location The location where favorites and checkbox selections are cached. No Object Device (local storage)
Cache Expiry The number of days the cached data is saved in the database. No Number 365
Live Tile
Enable Live Tile Select to enable list Live Tile. No Checkbox Selected
Show Category Title No Checkbox Selected
Flip Through Categories No Checkbox Selected
Flip Rate No Number 1
Look and Feel
Primary Theme Color Select a color for the main elements on the page. No Color Picker #444444
Secondary Theme Color Select a color for the secondary elements on the page. No Color Picker #6f8ea4
Text/Labels
Page Title No String To Do List
Favorites Page Title No String Favorites
Filter Page Title No String Select a Filter Value
Home Label No String Home
Favorites Tab Label No String Favorites
Search Bar Text No String Enter search term...
Search Button Text No String Search
No Search Results Text No String No Results
View More Button Label The label for the View More button on the live tile. No String View More
No Favorites Message No String You have no favorites saved
Error Message No String Something went wrong. Please try again later.
