Personal Details

The Personal Details product integration displays details about the user.

Overview

The Personal Details product integration displays details about the user.

Vendors

The Personal Details product integration is currently supported by the RESTful API (generic) and PeopleSoft vendors.

User Experience

The following section describes information relating to the user experience for the Personal Details product integration.

User Activities

Students can view their personal details along with an (optional) picture.

Authentication

There is no need for additional user authentication except for the API authentication.

Offline Support

Personal Details data is stored on the user’s device for offline viewing. While internet access is required in order to log into the app, when the user is logged in, if they then go offline, they can still access their Personal Details through the app.

A content reuse widget was here but the content was missing. The reused content is Media_Repository/campusM_Content_Reuse/Offline_Support_Note

Screenshots

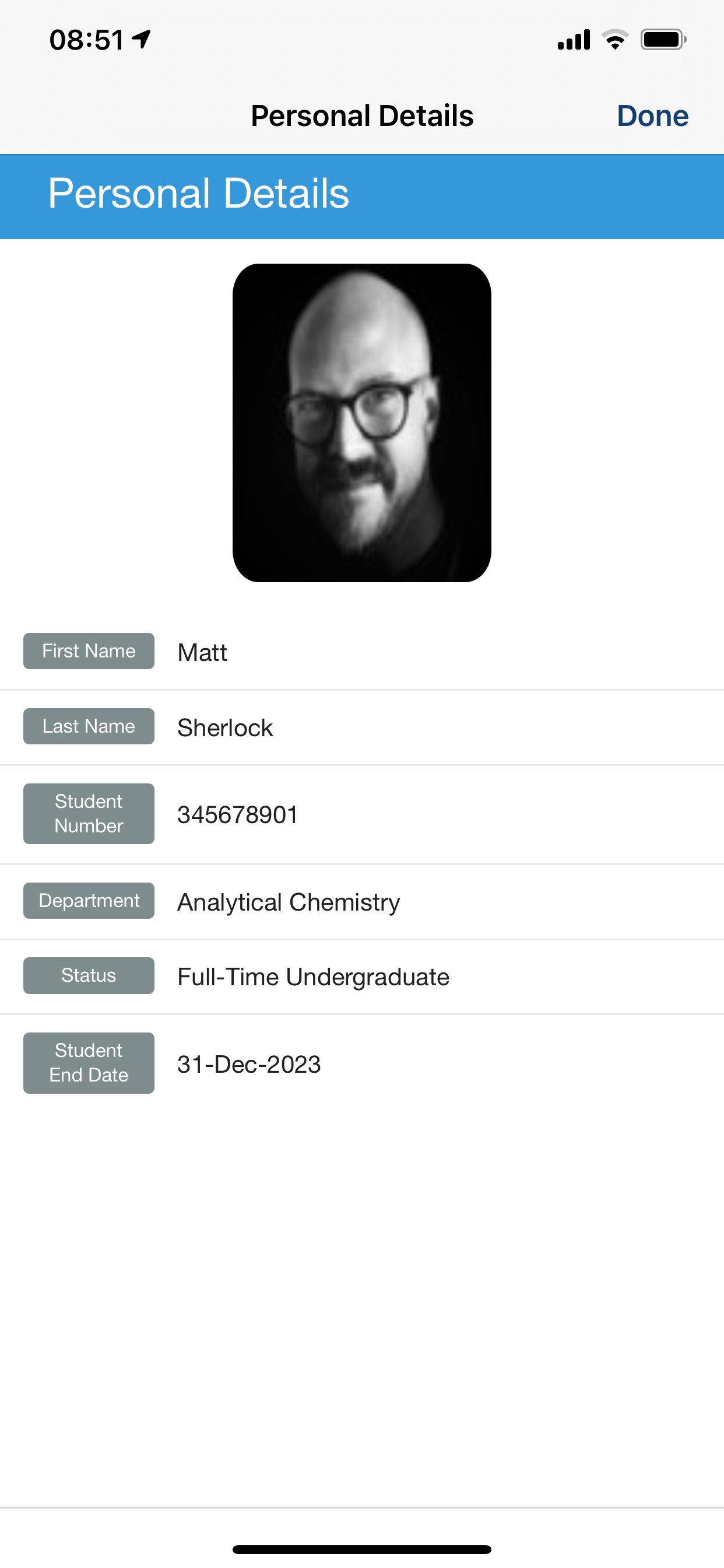

Personal Details with Picture

Technical Overview

The following section describes technical information for the Personal Details product integration.

Prerequisites

The following prerequisites are required for the ID Card product integration.

RESTful API Vendor

In order to retrieve the data, you need to create an API with the following requirements:

  • The API is in the format:https://www.mydomain.com/getUserDetails.
  • The API receives as a query parameter a user parameter that receives the user's identifier as configured in the API configuration. For example:https://www.mydomain.com/getUserDetails?user=username
  • The API returns a JSON response with the following structure:
    { "photo": "http://..photo.png", "name": "Jane Doe", "age": "26", ... }

To display an image, it must be returned in the API under the key photo.

PeopleSoft Vendor

  • The IDP should return the end user's PeopleSoft ID attribute. In CMAuth, this attribute can have any name in the IDP attributes response (from SAML/OAuth/LDAP) but needs to be mapped in the Additional Mappings section of the CMAuth integration profile.
  • The attribute is then configured in the User Input Identifier field in the PeopleSoft API Configuration section of the PI configuration page (see "Configuration", below).
  • The new mapping of the authentication token requires users to log out and log in to the app.

Configuration

To configure the Personal Details product integration, select Add Product Integration from the Product Integrations main menu option.

Select Personal Details.

The following table describes the configuration options available on this page.

Non-mandatory fields are displayed with their default values unless otherwise noted.
Configuration Option Description Mandatory Data Type Default Example
Manage Integration
Enable Product Integration Select to enable the product integration on the user's campusM app. No Checkbox Unselected
Product Integration Description A description of the product integration for internal use Yes String
Screen Title The title that appears in the top header of the service No String Registration Status
Vendor– This section defines the structure of the APIs used in this product integration.
Vendor Name Defines to which vendor the integration connects. Yes Drop-down list API
RESTful API Configuration This section contains the API details to define the RESTful API structure. You can test the API configuration. See Testing API Product Integration Configuration.
Base URL to retrieve the information The URL for the API Yes URL https://{HOST}
Parameter Input Option The parameter input option. Possible values: Username, Token Property, and Constant. It is sent as the path parameter . Yes Drop-Down list Token Property
Token Property Name Enter the property name to be retrieved from the token ({ USERNAME, MAIL, GIVEN_NAME, SURNAME, FULL_NAME } or as named in the integration profile) No String USERNAME
Constant Value The value when the User Identifier is set to Constant No String
Authentication Type Authentication type against the web service. The options are the following:
  • No Auth
  • Basic - username and password for Base64 basic authentication.
  • API Key - can be added to a Header or to the URL (Query Param) or both.
  • Bearer token
  • OAuth Using User App Authentication – select an OAuth integration profile (from the Integration Profiles configured in App Settings) and choose where the access token should be added, Header or URL.
  • OAUTH Using Client Credentials – select this if you are using a preliminary token call to get the access token.
 No Object No Auth

PeopleSoft API Configuration

Base URL to retrieve the information This is the full domain and path of the PeopleSoft query, minus the query parameters. Yes URL
User Input Identifier
Parameter Input Option Either Username, Token Property (from CMAuth) or Constant (for a static value). Yes Drop-down list Username
Token Property Name Only used if Parameter Input Option is Token Property. No String
Constant Value Only used if Parameter Input Option is Constant. No String
API Authentication
Authentication Type Authentication type against the web service. The options are the following:
  • No Auth
  • Basic - username and password for Base64 basic authentication.
  • API Key - can be added to a Header or to the URL (Query Param) or both.
 Yes Drop-down list

Show Advanced Settings

Controls the display of Advanced Settings, below.

No

Checkbox

Unchecked

Advanced Settings

Unique Prompt Name

For PeopleSoft, to determine the type of identifier being passed. This complements the prompt field value, which is determined by the User Identifier.

No

String

EMPLID

Row Number

The PeopleSoft query may return more than one row. Set the row number to be used for all query responses.

No

Integer

1
General
Enable Picture Select to display a picture of the user No Boolean False
Fields The fields to be displayed on the page No Array
Code The key this field returns in the API response Yes String name
Label The label to display on the page Yes String Name
Look and Feel
Primary Theme Color Select a color for the main elements on the page No Color Picker #444444
Secondary Theme Color Select a color for the secondary elements on the page No Color Picker #6f8ea4
Text/Labels
Page Title Shown at the top of the page. To hide a page title, enter noHeader. No String Personal Details
Error Message The text to be displayed when there is an error reaching the API No String

There was an error retrieving the data
Import/ Export Configuration You can configure product integration and then export it to another campusM environment, for example, from sandbox to production or from preview to production.
Export Create a JSON file with all product integration configurations. No
Import Use this option to load configuration from JSON of an exported product integration. No
