Canvas

The Canvas Product Integration provides a grid-style live tile that aggregates a student's Canvas modules on the app homepage.

Overview

The Canvas Product Integration provides a grid-style live tile that aggregates a student's Canvas modules on the app homepage.

User Experience

The following section describes information relating to the user experience for the Canvas product integration.

User Activities

The live tile aggregates a number of different types of Canvas information into simple widgets for the user to read at a glance. These include:

  • Number of enrolled (active) courses
  • Number of unread conversations (Inbox)
  • Assignments count
  • Grades count
  • Calendar events count
  • Announcements count
  • Discussions count
  • Next assignment due (if any)

The live tile provides deep links to the Canvas Courses app for both mobile and web versions. Selecting Inbox links to the Canvas Inbox, and selecting all other components links to the Canvas Courses section. Additionally, users can view due dates for Canvas assignments in campusM calendars.

Authentication

The Canvas authentication uses an OAuth Integration Profile (configured at App Settings > Integration Profile > Add Integration Profile.This must be configured before the product integration will work. See OAuth Integration Profile Configuration.

Offline Support

Canvas data is not cached on the user's device. A Live Tile is intended to present fresh data, to configure the time between updates, see Configuration.

Screenshots

The following is an overview of the Canvas product integration user interface for a reference when configuring it.

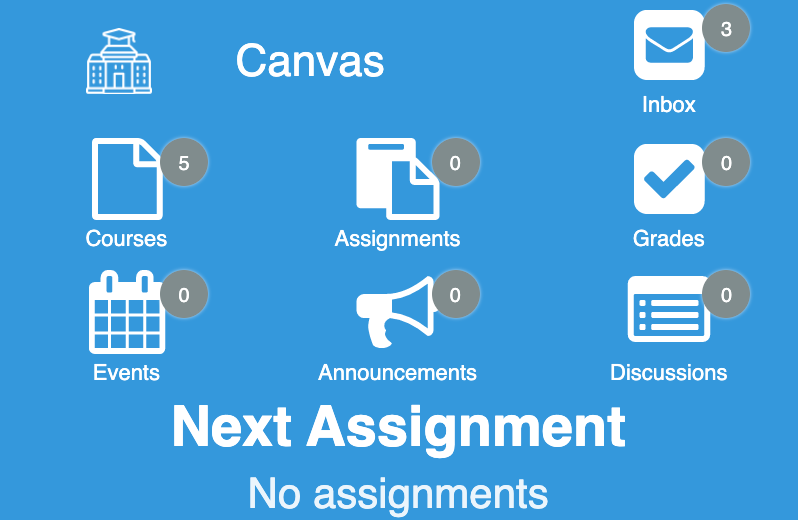

Example of 3 x 2 dimensions

Live Tile Configuration Rules

The Canvas live tile is designed to work with the following tile sizes. The tile will attempt to display as many elements as possible regardless of the dimensions set, but we cannot guarantee the intended experience if you do not adhere to the following dimensions. The tile dimensions are set in the App Builder, while the widgets per row (and other details) are set in the Configuration page for this product integration.

  • 1 wide x 1 high
    • This is a special case. The tile will only display one widget (the highest prioritized, enabled widget).
  • 2 wide x 1 high
    • We recommend using 1 - 2 widget rows and using 1 - 3 widgets per row.
    • The Next Assignment area only displays if it is the only item enabled.
  • 2 wide x 2 high
    • We recommend using 2 - 3 widget rows and using 1 - 3 widgets per row.
  • 3 wide x 1 high
    • We recommend using 1 - 2 widget rows and using 2 - 4 widgets per row.
    • The Next Assignment area only displays if it is the only item enabled.
  • 3 wide x 2 high
    • We recommend using 2 - 3 widget rows and using 2 - 4 widgets are used per row.
  • 3 wide x 3 high
    • We recommend using 2 - 4 widget rows and using 2 - 4 widgets are used per row.

We recommend keeping the header text and widget labels for the live tile short.

Technical Overview

The following section describes technical information for the Canvas product integration.

Supported Versions

There are no version requirements. The prerequisites provided below are valid for the last three years of Canvas releases (at least). The only requirement is that when your Canvas administrator adds a developer key, the Redirect URIs field is available as well as the legacy Redirect URI field. We require the former (see Prerequisites).

Prerequisites

The following prerequisites are required to configure the Canvas product integration:

  • Contact Ex Libris to add your Canvas Base URL to the proxy list.
  • The Canvas hostname for the product integration from which to fetch information.
  • A Canvas developer key with Redirect URLs set for your Sandbox, Preview, and Production app hostnames.
    • Each hostname must end in /cmauth/oauth/callback, for example,https://my-app.name.com/cmauth/oauth/callback.
    • This is not a URL that is meant to be accessible. It is used by our cloud platform to complete the OAuth authentication flow.
    • Scopes are not enabled by default, but you can enable them. See OAuth Scopes.
    • Once the developer key is set up, you can use the client ID and the secret to set up an integration profile for the Canvas instance you want to use with the product integration.

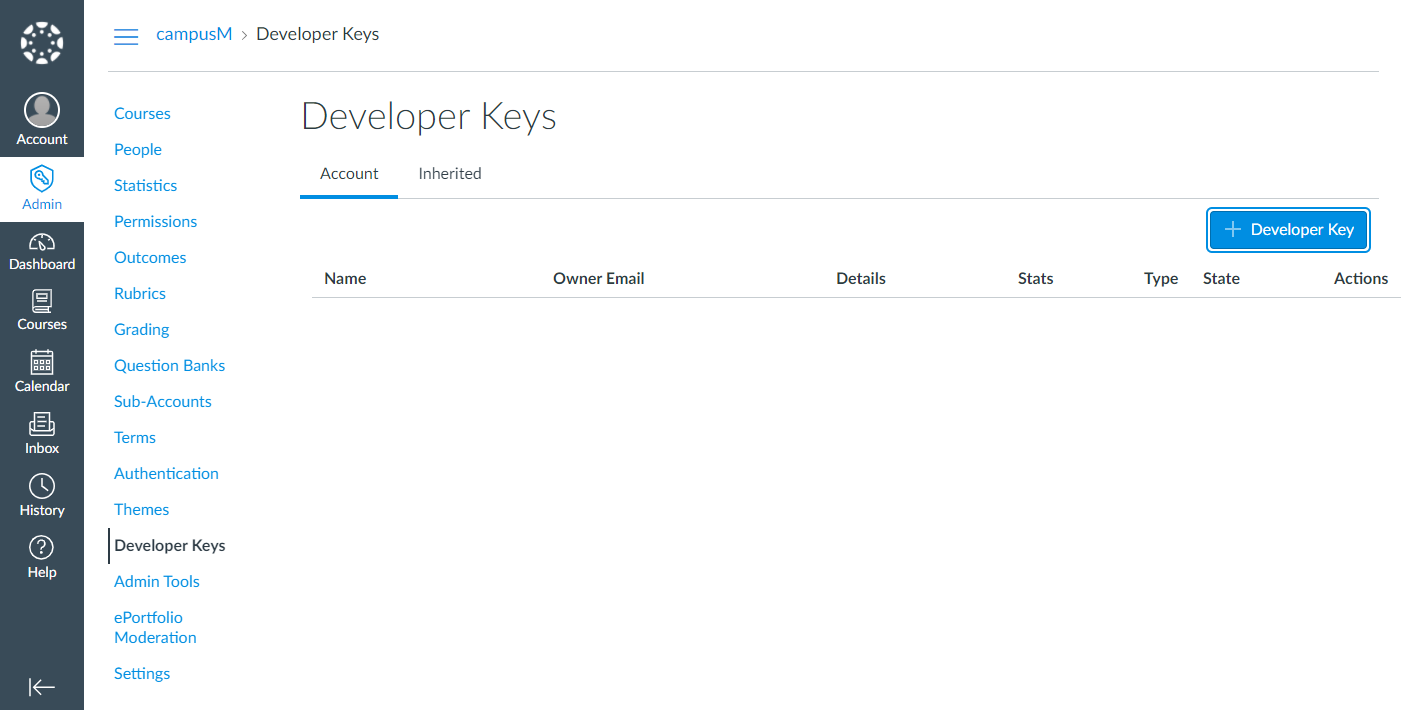

    To configure the key, from the Canvas Admin page, select Admin > Developer Keys:

    Developer Keys Admin.png

    Developer Keys

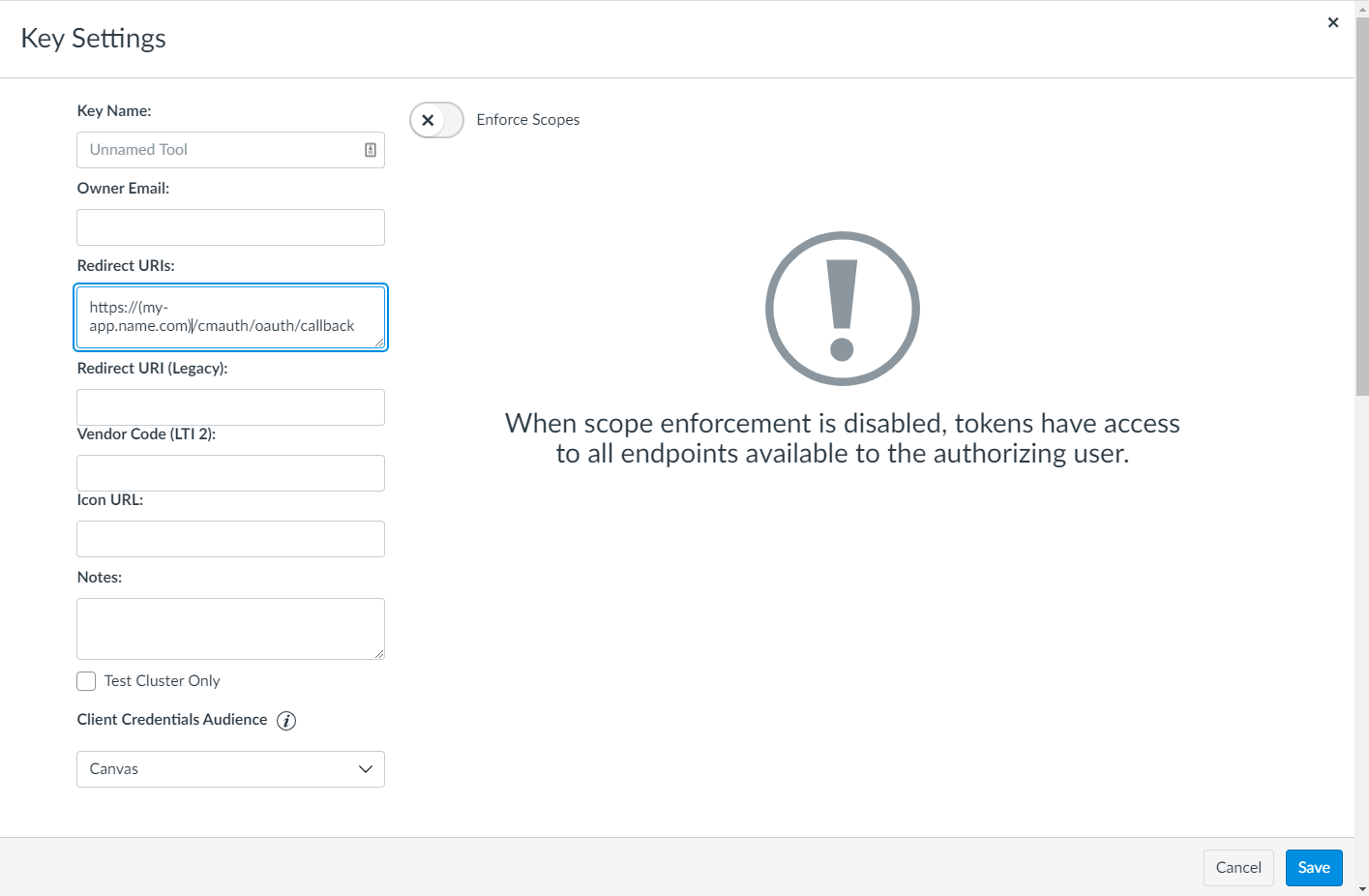

    Enter the URI in the Redirect URI field and select Save.

    Developer Keys Settings.png

    URI Redirect

Authentication

The following is the authentication workflow:

  1. The end-user opens the Canvas tile.
  2. campusM requests a token from the Canvas token API.
  3. The user logins into Canvas if they have not already done so.
  4. If valid, Canvas sends a response with the user's access token.
  5. campusM sends the access token with every Canvas API request made. It is automatically refreshed on expiry unless the user has logged out of the campusM app or their Canvas session.

Configuration

To configure the Canvas product integration, first configure an authentication integration profile (subtype OAuth) that you then select in the Product Integration configuration section.

OAuth Integration Profile Configuration

You add integration profiles from App Settings > Integration Profile > Add Integration Profile and edit integration profiles from App Settings > Integration Profile.

The following table describes the configuration options available on this page. All values are exactly as-is unless listed otherwise.

Fields not listed can be left empty.

Configuration Option Description
Name Anything unique that describes the profile, for example, Canvas Sandbox.
Description A description of the profile. Not required.
Type Authentication
Subtype OAuth
OAuth Client ID The ID of the Developer Key created
OAuth Client Secret The secret of the Developer Key created
Authorization Endpoint https://CANVAS_HOST/login/oauth2/auth (CANVAS_HOST is your Canvas instance's hostname)
Access Token Endpoint https://CANVAS_HOST/login/oauth2/token
Token Endpoint Auth Basic
User Info Endpoint https://CANVAS_HOST/api/v1/users/USER_ID
Extract OAuth Tokens Yes
Username Mapping name
Mail Mapping name
First Name Mapping name
Last Name Mapping name

OAuth Scopes

Canvas does not enforce scopes by default on any new developer key created. However, you can enable scopes and then set them in the OAuth Scope field of the Integration Profile.

This is the current list of scopes used by the Canvas product integration:

url:GET|/api/v1/users/:id url:GET|/api/v1/users/:user_id/courses url:GET|/api/v1/courses/:course_id/activity_stream/summary url:GET|/api/v1/courses/:course_id/assignments url:GET|/api/v1/conversations/unread_count url:GET|/api/v1/calendar_events

These scopes must be pasted into the field as-is. If you are entering them yourself, note that if you enter multiple scopes into the field, they must be separated by spaces. Any change to the scopes listed above, or their formatting, will result in a failed authentication attempt.

If you are also using the Data Export feature in Attendance, and you want to use the same Integration Profile for Data Export and a PI instance, the combined scopes look like this:

url:GET|/api/v1/courses/:id url:GET|/api/v1/courses/:course_id/users url:GET|/api/v1/sections/:id url:GET|/api/v1/courses/:course_id/assignments url:POST|/api/v1/courses/:course_id/assignments/:assignment_id/submissions/update_grades url:POST|/api/v1/courses/:course_id/assignments url:PUT|/api/v1/courses/:course_id/assignments/:id url:GET|/api/v1/users/:id url:GET|/api/v1/users/:user_id/courses url:GET|/api/v1/courses/:course_id/activity_stream/summary url:GET|/api/v1/conversations/unread_count url:GET|/api/v1/calendar_events

Product Integration Configuration

To configure the Canvas product integration, select Product Integrations > Add Product Integration.

Select Canvas. The following table describes the configuration options available on this page.

Configuration Option Description Mandatory Data Type Default Example
Enable Product Integration Select to enable the product integration on the user's campusM app. No
Product Integration Description A description of the product integration for internal use. Yes
Vendor
Integration Profile The name of the Integration Profile created previously, selected from a list of available profiles. Yes String
Text/Labels
Text - "Redirecting..." Displayed on the temporary redirect page, while the user is being redirected to Canvas. Redirecting...
Text - "This page should automatically redirect you to the login screen. Click the button below to go there now." Displayed on the temporary redirect page, while the user is being redirected to Canvas. This page should automatically redirect you to the login screen. Click the button below to go there now.
Text - "Login" Displayed on the temporary redirect page, while the user is being redirected to Canvas. Login
Text - "Oops, something went wrong" Displayed on the temporary redirect page, while the user is being redirected to Canvas. Oops, something went wrong
Text - "Retry" Displayed on the temporary redirect page, while the user is being redirected to Canvas. Retry
API Configuration
URL to retrieve the information The encoded base URL of your Canvas instance, provided by Ex Libris. Yes URL Provided by Ex Libris
Live Tile
Enabled Enables or disables the live tile itself. Yes Checkbox Yes
Badge Color The color of all the icons on each Canvas widget on the live tile. No Color Code #FFFFFF #EEEEEE
Tile Error Background Color Used when the tile displays an error. No Color Code #AD0000
Update Rate Frequency of updates from Canvas to the live tile (in minutes). Has a minimum of 20 (minutes). No Integer 60
Enrollment Type Sets the Canvas enrollment type for the tile. This determines what course information is returned. No Array Student
Live Tile Items
Show Live Tile Header Text Select to display the header on the live tile. If cleared, the text does not appear in the header. If both the header text and the header logo are disabled, the header does not appear. No Checkbox Yes
Show Live Tile Header Logo Select to display the logo on the live tile. If disabled, the logo does not appear in the header. If both the logo and the header text are disabled, the header does not appear. No Checkbox False
URL for Header Logo The URL of the image to be used as the logo in the header. No String
Customise Live Tile Header Padding If enabled, enables you to customise the blank space around the header block. All values have a minimum of 0. No Checkbox No
The First Widget(s) Should Display on the Same Row as the Header If disabled, the first widget row will start below the header. No Checkbox Yes
Hide Widget Labels If enabled, hides all labels for any configured widgets on the tile. Does not affect the Live Tile Header. No Checkbox No
Widgets Per Row This sets the number of widgets to display per row. There is a minimum of 1 and a maximum of 5. No Integer 3
Show Inbox If disabled, the inbox widget will not appear on the live tile. No Checkbox Yes
Show Courses If disabled, the courses widget will not appear on the live tile. No Checkbox Yes

Exclude courses that have already ended. This will also exclude all related course content.

 No Checkbox Yes

Include courses that have no end date set. This will also include all related course content.

 No Checkbox Yes
Show Assignments If disabled, the assignments widget will not appear on the live tile. No Checkbox Yes
Assignment Options

Assignment Buckets

Canvas filters assignments into 'buckets'. This PI fetches the 'upcoming' bucket by default - enable more below. Please note this will increase API load.

No Checkbox

No
No Checkbox

No
No Checkbox

No
No Checkbox

No
No Checkbox

No
No Checkbox

No
Show Grades If disabled, the grades widget will not appear on the live tile. No Checkbox Yes
Show Calendar Events If disabled, the events widget will not appear on the live tile. No Checkbox Yes
Show Announcements If disabled, the announcements widget will not appear on the live tile. No Checkbox No
Show Discussions If disabled, the discussions widget will not appear on the live tile. No Checkbox No
Show Next Assignment Row If disabled, the live tile will not display the next upcoming assignment. No Checkbox Yes
Assignment Row Filters
Hide Past Assigments

Hide past assignments from the upcoming assignment row.

 No Checkbox No
Filter Buckets

Canvas filters assignments into 'buckets'. If you've configured this PI to fetch additional buckets, you can exclude them from the Next Assignment row here.

No Checkbox No
No Checkbox No
No Checkbox No
No Checkbox No
No Checkbox No
No Checkbox No
No Checkbox No
Always Display Widget Count If enabled, all widgets will display the count even if the count is 0. No Checkbox Yes
Prioritize Live Tile Items
Priority This ordered list prioritizes the items that appear on the live tile. The item at the top of the list appears first, while the last item appears last. No Ordered List
Icons
Use Custom Icons Select to use custom icons instead of the default live tile icons No Checkbox No
URL Enter the URLs of custom images for the icons of the various widgets No String
Web Links and Deep-Linking
Always Prefer Action (URL) If enabled, the live tile will always redirect to the target of the Action (URL) set in App Builder (if any), on all platforms. No Checkbox No
Use Web Links on Native Devices If enabled, the live tile will not use the deep links into the Canvas app on native devices, and will open the Canvas website instead. No Checkbox No
App Store URLs
Canvas Google Play Store Page URL This is required for the fallback behavior in all deep links to third-party apps. No URI https://play.google.com/store/apps/details?id=com.instructure.candroid
Canvas Apple App Store Page URL This is required for the fallback behavior in all deep links to third-party apps. No URI https://itunes.apple.com/gb/app/canvas-by-instructure/id480883488
Text/Labels
Live Tile Header Text This sets the text for the live tile header. It is displayed if the Show Live Tile Header Text checkbox is selected. It is recommended you keep this text short. No String Canvas
Text - "Inbox" Displayed underneath the Inbox widget, if enabled. No String Inbox
Text - "Courses" Displayed underneath the Courses widget, if enabled. No String Courses
Text - "Assignments" Displayed underneath the Assignments widget, if enabled. No String Assignments
Text - "Grades" Displayed underneath the Grades widget, if enabled. No String Grades
Text - "Events" Displayed underneath the Calendar Events widget, if enabled No String Events
Text - "Announcements" Displayed underneath the Announcements widget, if enabled. No String Announcements
Text - "Discussions" Displayed underneath the Discussions widget, if enabled. No String Discussions
Text - "Next Assignment" The label for the Next Assignment Row block. No String Next Assignment
Text - "No assignments" Displayed if 'Show Next Assignment Row' is enabled, but there are none returned by Canvas. No String No assignments
Date Format (long) You can enter any ISO-standard date format here. For more information on LL, LLL and LLL, see Locale aware formats at Moment.js Documentation. No String LL
Text - "Error fetching courses from Canvas" Displayed if Canvas does not return all of the required content needed for the live tile. No String Error fetching courses from Canvas
Due Dates Calendar
Show Due Dates in Calendar Enables Due Dates in the Calendar feed. No Checkbox Yes
Due label The label text that appears before the name of the assignment in the calendar. No String Due:
Date format The date format that appears in the event description. No String EEE, MMM d, yyyy Wed, Jul 4, 2021
Time format The time format that appears in the event description. No String HH:mm 15:45
Due Date Event Description The description of the event. Use %title, %date and %time to insert the relevant data for the specific event. No String %title is due on %date at %time. Philosophy Essay is due on Wed, Jul 4, 2021 at 15:45.
Link to Assignment label The text that appears in the calendar event, linking to the Canvas assignment itself. No String Link to assignment
